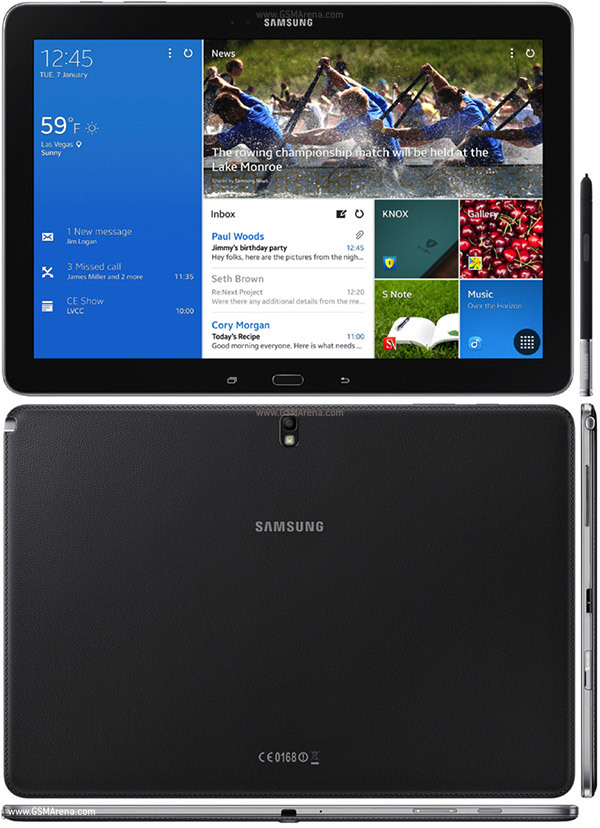

Samsung Galaxy Note Pro 12.2 LTE / Specification
Display
Type: Super clear LCD capacitive touchscreen, 16M colors
Size: 12.2 inches (~71.6% screen-to-body ratio)
Resolution: 2560 x 1600 pixels (~247 ppi pixel density)
Multi touch: Yes, up to 10 fingers
Protection: Corning Gorilla Glass 3 - Samsung TouchWiz UI
Size: 12.2 inches (~71.6% screen-to-body ratio)
Resolution: 2560 x 1600 pixels (~247 ppi pixel density)
Multi touch: Yes, up to 10 fingers
Protection: Corning Gorilla Glass 3 - Samsung TouchWiz UI
Body
Dimensions: 295.6 x 204 x 8 mm (11.64 x 8.03 x 0.31 in)
Weight: 753 g (1.66 lb)
SIM: Micro-SIM - S Pen stylus
Weight: 753 g (1.66 lb)
SIM: Micro-SIM - S Pen stylus
Memory
Card slot: microSD, up to 64 GB
Internal: 32/64 GB, 3 GB RAM
Internal: 32/64 GB, 3 GB RAM
Platform
OS: Android OS, v4.4 (KitKat), upgradable to v5.0.2 (Lollipop)
Chipset: Qualcomm Snapdragon 800
CPU: Quad-core 2.3 GHz Krait 400
GPU: Adreno 330
Chipset: Qualcomm Snapdragon 800
CPU: Quad-core 2.3 GHz Krait 400
GPU: Adreno 330
Battery
-: Non-removable Li-Ion 9500 mAh battery
Stand-by:
Talk time: Up to 10 h 30 min (multimedia) (2G) / Up to 51 h (3G)
Music play: Up to 188 h
Stand-by:
Talk time: Up to 10 h 30 min (multimedia) (2G) / Up to 51 h (3G)
Music play: Up to 188 h
Network
Technology: GSM / HSPA / LTE
2G bands: GSM 850 / 900 / 1800 / 1900
3G bands: HSDPA 850 / 900 / 1900 / 2100
4G bands: LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800)
Speed: HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
GPRS: Yes
EDGE: Yes
2G bands: GSM 850 / 900 / 1800 / 1900
3G bands: HSDPA 850 / 900 / 1900 / 2100
4G bands: LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800)
Speed: HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps
GPRS: Yes
EDGE: Yes
Launch
Announced: 2014, January
Status: Available. Released 2014, March
Status: Available. Released 2014, March
Camera
Primary: 8 MP, 3264 x 2448 pixels, autofocus, LED flash
Features: Geo-tagging, face/smile detection
Video: 1080p@30fps
Secondary: 2 MP, 1080p@30fps
Features: Geo-tagging, face/smile detection
Video: 1080p@30fps
Secondary: 2 MP, 1080p@30fps
Sound
Alert types: Vibration; MP3, WAV ringtones
Loudspeaker: Yes, with stereo speakers
3.5mm jack: Yes
Loudspeaker: Yes, with stereo speakers
3.5mm jack: Yes
Comms
WLAN: Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
Bluetooth: v4.0, A2DP
GPS: Yes, with A-GPS, GLONASS
Infrared port: Yes
Radio: No
USB: microUSB v3.0 (MHL TV-out), USB Host
Bluetooth: v4.0, A2DP
GPS: Yes, with A-GPS, GLONASS
Infrared port: Yes
Radio: No
USB: microUSB v3.0 (MHL TV-out), USB Host
Features
Sensors: Accelerometer, gyro, compass
Messagingи: SMS(threaded view), MMS, Email, Push Mail, IM
Browser: HTML5
Java: No - MP4/DivX/XviD/WMV/H.264 player - MP3/WAV/eAAC+/FLAC player - Photo/video editor - Document viewer
Messagingи: SMS(threaded view), MMS, Email, Push Mail, IM
Browser: HTML5
Java: No - MP4/DivX/XviD/WMV/H.264 player - MP3/WAV/eAAC+/FLAC player - Photo/video editor - Document viewer
Misc
Colors: Black, White
SAR US: 1.57 W/kg (body)
SAR EU: 0.76 W/kg (body)
Price group: 9/10 (About 670 EUR)
SAR US: 1.57 W/kg (body)
SAR EU: 0.76 W/kg (body)
Price group: 9/10 (About 670 EUR)
